GeoPipe — Geographical energy system modeling data pipeline

GeoPipe is an automated, open-source data processing pipeline that transforms geospatial data on energy demand and supply and techno-economic data into a structured energy system representation. The structured energy system representation can be passed to modern multi investment energy system models via lightweight Python interfaces.

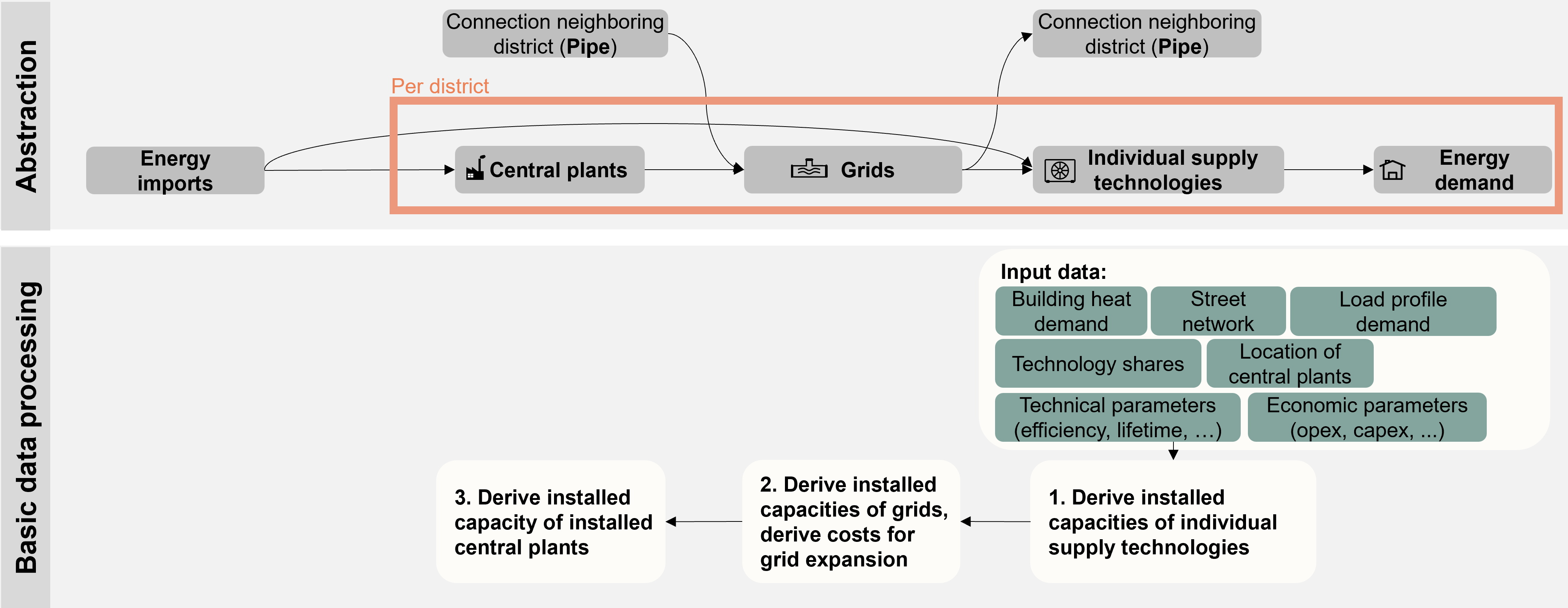

Structured Representation of Energy System


Concept

flowchart TD
    streets["Street network"] -- "register_streets" --> dr["DataRegistry"]
    datasets["Datasets"] -- "register" --> dr
    dr -- "streets" --> tb["TopologyBuilder"]
    tb -- "topology" --> esb["EnergySystemBuilder"]
    subgraph inputs["Energy system inputs"]
        direction TB
        techs["Technologies"] --- demands["DemandTypes"] --- ie["Commodity<br/>data"]
    end
    inputs --> esb
    dr -- "demand annual values, demand time profiles, technology shares" --> esb
    esb -- "EnergySystem" --> ob["OptimizationBackend"]
    scenario["Scenario"] --> ob
    ob -- "Solution" --> out["Results, Report, Plots"]

    linkStyle 4,5 stroke:none,stroke-width:0px

    click streets href "Components/modify_streets_data/"
    click tb href "Components/topology_builder/"
    click techs href "Components/technologies/"
    click demands href "Components/demand_type/"
    click ie href "Components/energy_system_builder/#imports_exportsyaml"
    click esb href "Components/energy_system_builder/"
    click datasets href "Components/data_registry/"
    click dr href "Components/data_registry/"
    click ob href "Components/optimization/#optimizationbackend"
    click scenario href "Components/optimization/#scenario"
    click out href "Components/optimization/#solution"

See examples/urban_heat_planning/main.py for an end-to-end reference.

Where to start

  • New to the project? Install GeoPipe, then follow the diagram top-to-bottom — each box is one step in the example script.
  • Found a bug or want to contribute? Open an issue or pull request on GitHub.
